Stable Genset

10-3500kw kinds of genset

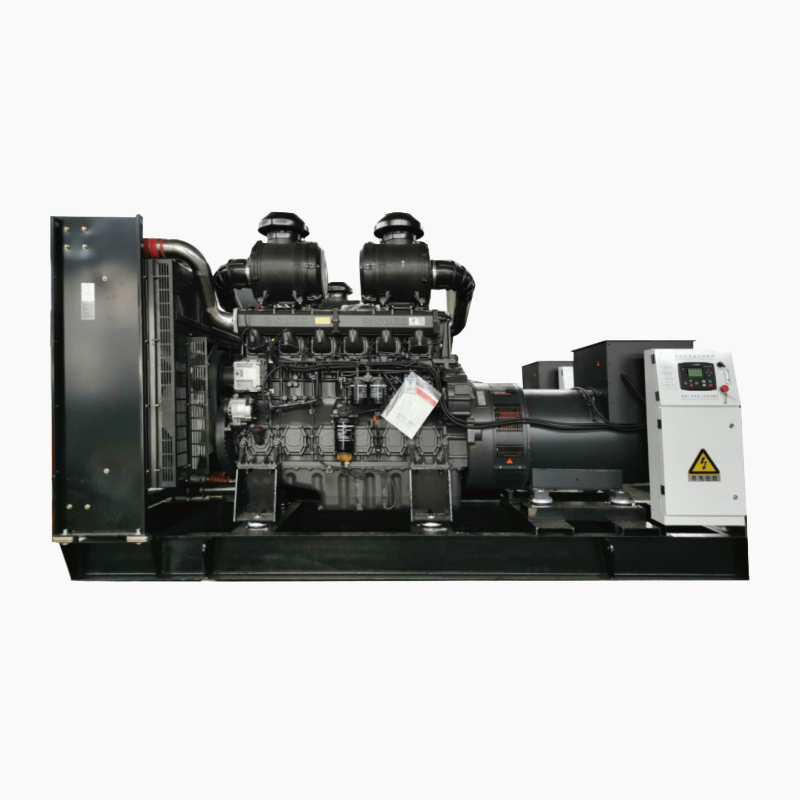

HD ShangChai Series

Power Range: 15kVA-2250kVA; 12kW-1800kW
Voltage Range: 110V,220V,380V,400V,440V,460V, 480V, 690V,10kV,11kV,13.8kV
Design & Manufacturing Standard: ISO 8528 & GB/T 2820
Product Certification: TLC, CE, UL, EAC, RETIE…

HD ShangChai Series

Shall we start to design and manufact your unique genset?

Company

PRODUCTS

Support



Hua Dong Power Generator Set—HDSC Series with ShangChai Engine
NO.	HD Model	Prime Power (kVA/kW)	Standby Power (kVA/kW)	Rated Current (A)	Engine Model	Alternator Model	Data PDF
1	HDSC15C-0.4F2	15/12	16.5/13	22	4Z2.3-G11	TAL-A40-D	N/A
2	HDSC20C-0.4F2	20/16	22/18	29	4Z2.3-G12	TAL-A40-F	N/A
3	HDSC25C-0.4F2	25/20	28/22	36	4Z2.7-G12	TAL-A40-G	N/A
4	HDSC30C-0.4F2	30/24	33/26	43	4Z3.0-G12	TAL-A42-C	N/A
5	HDSC38C-0.4F2	38/30	42/33	54	4Z3.2-G12	TAL-A42-E	N/A
6	HDSC45C-0.4F2	45/36	50/40	65	4ZT3.2-G12	TAL-A42-F	N/A
7	HDSC63C-0.4F2	63/50	70/55	90	4ZT4.1-G21	TAL-A42-H	N/A
8	HDSC75C-0.4F2	75/60	83/66	108	4ZTAA4.1-G22	TAL-A44-C	N/A
9	HDSC80C-0.4F2	80/64	88/70	115	SC4H115D2	TAL-A44-C	N/A
10	HDSC100C-0.4F2	100/80	110/88	144	SC4H140D2	TAL-A44-D	N/A
11	HDSC125C-0.4F2	125/100	138/110	180	SC7H180D2	TAL-A44-E	N/A
12	HDSC150C-0.4F2	150/120	165/132	216	SC7H205D2	TAL-A44-J	N/A
13	HDSC188C-0.4F2	188/150	206/165	270	SC7H250D2	TAL-A44-M	N/A
14	HDSC200C-0.4F2	200/160	225/180	302	SC8D280D2	TAL-A44-M	N/A
15	HDSC250C-0.4F2	250/200	275/220	360	SC9D340D2	TAL-A46-D	N/A
16	HDSC313C-0.4F2	313/250	350/280	450	SC10E420D2	TAL-A46-G	N/A
17	HDYC375C-0.4F2	375/300	413/330	540	SC13E500D2	TAL-A473-A	N/A
18	HDSC450C-0.4F2	450/360	500/400	648	SC25G610D2	TAL-A473-B	N/A
19	HDSC500C-0.4F2	500/400	550/440	720	SC25G690D2	TAL-A473-C	N/A
20	HDSC563C-0.4F2	563/450	625/500	810	SC27G755D2	TAL-A473-E	N/A
21	HDSC625C-0.4F2	625/500	688/550	900	SC27G830D2	TAL-A473-F	N/A
22	HDSC688C-0.4F2	688/550	750/600	990	SC27G900D2	TAL-A49-B	N/A
23	HDSC750C-0.4F2	750/600	825/660	1080	SC25K990D2	TAL-A49-B	N/A
24	HDSC800C-0.4F2	800/640	888/710	1152	SC33W1150D2	TAL-A49-C	N/A
25	HDSC15C-0.4F3	15/12	16.5/13	22	4Z2.9-G43	TAL-A40-D	N/A
26	HDSC20C-0.4F3	20/16	22/18	29	4Z2.9-G42	TAL-A40-F	N/A
27	HDSC25C-0.4F3	25/20	28/22	36	4Z2.9-G41	TAL-A40-G	N/A
28	HDSC30C-0.4F3	30/24	33/26	43	4Z3.2-G42	TAL-A42-C	N/A
29	HDSC38C-0.4F3	38/30	42/33	54	4Z3.2-G41	TAL-A42-E	N/A
30	HDSC50C-0.4F3	50/40	55/44	72	4ZTAA3.2-G32	TAL-A42-G	N/A
31	HDSC63C-0.4F3	63/50	70/55	90	4ZTAA3.2-G34	TAL-A42-H	N/A
32	HDSC75C-0.4F3	75/60	83/66	108	4ZTAA3.5-G31	TAL-A44-C	N/A
33	HDSC80C-0.4F3	80/64	88/70	115	4HTAA4.3-G33	TAL-A44-C	N/A
34	HDSC100C-0.4F3	100/80	110/88	144	4HTAA4.3-G34	TAL-A44-D	N/A
35	HDSC125C-0.4F3	125/100	138/110	180	4HTAA4.3-G36	TAL-A44-E	N/A
36	HDSC150C-0.4F3	150/120	165/132	216	6HTAA6.5-G32	TAL-A44-J	N/A
37	HDSC188C-0.4F3	188/150	206/165	270	6HTAA6.5-G33	TAL-A44-M	N/A
38	HDSC200C-0.4F3	200/160	232/185	288	6HTAA6.5-G34	TAL-A44-M	N/A
39	HDSC250C-0.4F3	250/200	275/220	360	6DTAA8.9-G33	TAL-A46-D	N/A
40	HDSC313C-0.4F3	313/250	350/280	450	6ETAA11.8-G32	TAL-A46-G	N/A
41	HDSC350C-0.4F3	350/280	375/300	504	6ETAA11.8-G33	TAL-A46-H	N/A
42	HDSC375C-0.4F3	375/300	413/330	540	6ETAA11.8-G31	TAL-A473-A	N/A
43	HDSC400C-0.4F3	400/320	440/352	576	6ETAA12.8-G32	TAL-A473-A	N/A
44	HDSC450C-0.4F3	450/360	500/400	648	6ETAA12.8-G31	TAL-A473-B	N/A
45	HDSC500C-0.4F3	500/400	550/440	720	6ETAA12.8-G310	TAL-A473-C	N/A
46	HDSC575C-0.4F3	575/460	650/520	828	6KTAA25-G35	TAL-A473-E	N/A
47	HDSC625C-0.4F3	625/500	688/550	900	6KTAA25-G34	TAL-A473-F	N/A
48	HDSC688C-0.4F3	688/550	750/600	990	6KTAA25-G33	TAL-A49-B	N/A
49	HDSC750C-0.4F3	750/600	825/660	1080	6KTAA25-G32	TAL-A49-B	N/A
50	HDSC800C-0.4F3	800/640	888/710	1152	6KTAA25-G31	TAL-A49-C	N/A
51	HDSC910C-0.4F3	910/728	1000/800	1310	6KTAA25-G320	TAL-A49-D	N/A
52	HDSC1000C-0.4F3	1000/800	1100/880	1440	6KTAA25-G321	TAL-A49-E	N/A
53	HDSC1125C-0.4F3	1125/900	1250/1000	1620	6WTAA35-G310	LSA50.2 M6	N/A
54	HDSC1250C-0.4F3	1250/1000	1375/1100	1800	6WTAA35-G311	LSA50.2 M6	N/A
55	HDSC1350C-0.4F3	1350/1080	1500/1200	1944	6WTAA35-G313	LSA50.2 L7	N/A
56	HDSC1500C-0.4F3	1500/1200	1650/1320	2160	12KTA58-G35	LSA50.2 L8	N/A
57	HDSC1640C-0.4F3	1640/1312	1875/1500	2362	12KTA58-G34	LSA50.2 VL10	N/A
58	HDSC1875C-0.4F3	1875/1500	2062/1650	2700	12KTA58-G33	LSA52.3 S6	N/A
59	HDSC2000C-0.4F3	2000/1600	2200/1760	2880	12KTA58-G32	LSA52.3 S6	N/A
60	HDSC2250C-0.4F3	2250/1800	2500/2000	3240	12KTA58-G31	LSA52.3 L9	N/A
More details pls contact info@hd-power.com
