Stable Genset

10-3500kw kinds of genset

HD Weichai Series

Power Range: 25kVA-3000kVA; 20kW-2400kW
Voltage Range: 110V,220V,380V,400V,440V,460V, 480V, 690V,10kV,11kV,13.8kV
Design & Manufacturing Standard: ISO 8528 & GB/T 2820
Product Certification: TLC, CE, UL, EAC, RETIE…

HD Weichai Series

Shall we start to design and manufact your unique genset?

Company

PRODUCTS

Support



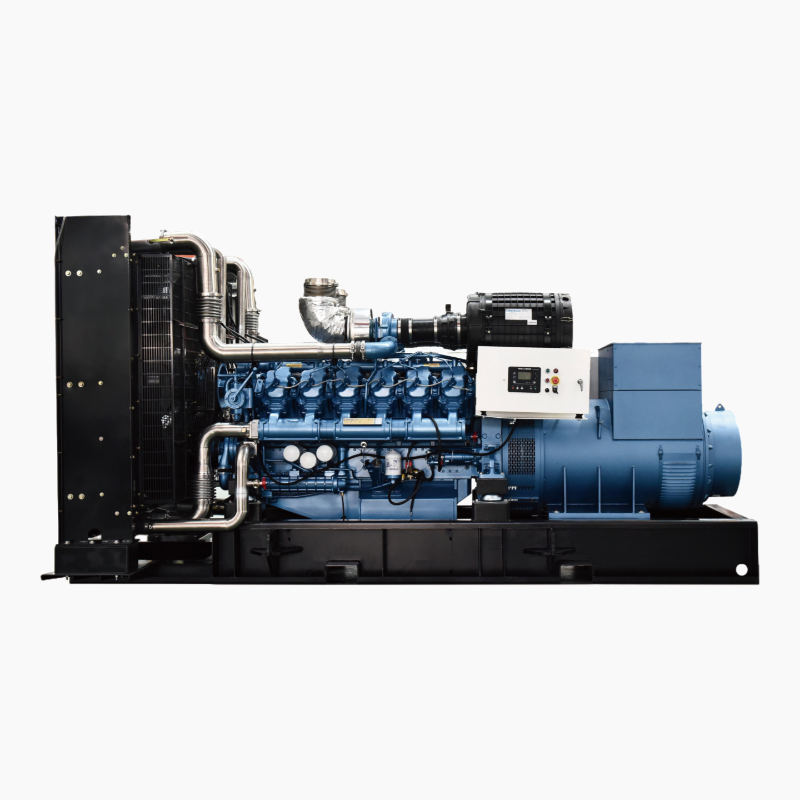

Hua Dong Power Generator Set—HDWC Series with WeiChai Engine
NO.	HD Model	Prime Power (kVA/kW)	Standby Power (kVA/kW)	Rated Current (A)	Engine Model	Alternator Model	Data PDF
1	HDWC25C-0.4F2	25/20	27.5/22	36	WP2.3D25E200	TAL-A40-G	N/A
2	HDWC30C-0.4F2	30/24	33/26.4	43	WP2.3D33E200	TAL-A42-C	N/A
3	HDWC38C-0.4F2	38/30	42/33	54	WP2.3D40E200	TAL-A42-E	N/A
4	HDWC45C-0.4F2	45/36	50/40	65	WP2.3D48E200	TAL-A42-F	N/A
5	HDWC63C-0.4F2	63/50	70/55	90	WP4.1D66E200	TAL-A42-H	N/A
6	HDWC80C-0.4F2	80/64	88/70	115	WP4.1D80E200	TAL-A44-C	N/A
7	HDWC100C-0.4F2	100/80	110/88	144	WP4.1D113E200	TAL-A44-D	N/A
8	HDWC125C-0.4F2	125/100	138/110	180	WP6D132E200	TAL-A44-E	N/A
9	HDWC150C-0.4F2	150/120	165/132	216	WP6D152E200	TAL-A44-J	N/A
10	HDWC175C-0.4F2	175/140	206/154	252	WP6D167E200	TAL-A44-L	N/A
11	HDWC200C-0.4F2	200/160	225/180	302	WP10D200E200	TAL-A44-M	N/A
12	HDWC250C-0.4F2	250/200	275/220	360	WP10D264E200	TAL-A46-D	N/A
13	HDWC313C-0.4F2	313/250	350/280	450	WP10D320E200	TAL-A46-G	N/A
14	HDWC375C-0.4F2	375/300	413/330	540	WP13D385E200	TAL-A473-A	N/A
15	HDYC450C-0.4F2	450/360	500/400	648	WP13D405E200	TAL-A473-B	N/A
16	HDWC575C-0.4F2	575/460	650/520	828	6M33D572E200	TAL-A473-E	N/A
17	HDWC625C-0.4F2	625/500	688/550	900	6M33D633E200	TAL-A473-F	N/A
18	HDWC688C-0.4F2	688/550	750/600	990	6M33D670E200	TAL-A49-B	N/A
19	HDWC800C-0.4F2	800/640	888/710	1152	8M33D800E200	TAL-A49-C	N/A
20	HDWC910C-0.4F2	910/728	1000/800	1310	8M33D890E200	TAL-A49-D	N/A
21	HDWC1000C-0.4F2	1000/800	1100/880	1440	12M26D968E200	TAL-A49-E	N/A
22	HDWC1125C-0.4F2	1125/900	1250/1000	1620	12M33D1108E200	LSA50.2 M6	N/A
23	HDWC1250C-0.4F2	1250/1000	1375/1100	1800	12M33D1210E200	LSA50.2 M6	N/A
24	HDWC1350C-0.4F2	1350/1080	1500/1200	1944	12M33D1320E200	LSA50.2 L7	N/A
25	HDWC25C-0.4F3	25/20	27.5/22	36	WP3.2D28E310	TAL-A40-G	N/A
26	HDWC30C-0.4F3	30/24	33/26.4	43	WP3.2D36E310	TAL-A42-C	N/A
27	HDWC38C-0.4F3	38/30	42/33	54	WP3.2D44E310	TAL-A42-E	N/A
28	HDWC63C-0.4F3	63/50	70/55	90	WP4.1D66E310	TAL-A42-H	N/A
29	HDWC75C-0.4F3	75/60	83/66	108	WP4.1D84E310	TAL-A44-C	N/A
30	HDWC100C-0.4F3	100/80	110/88	144	WP4.1D105E310	TAL-A44-D	N/A
31	HDWC125C-0.4F3	125/100	138/110	180	WP4.6N138E310	TAL-A44-E	N/A
32	HDWC150C-0.4F3	150/120	165/132	216	WP4.6N148E310A	TAL-A44-J	N/A
33	HDWC188C-0.4F3	188/150	206/165	270	WP7D185E310	TAL-A44-M	N/A
34	HDWC225C-0.4F3	225/180	250/200	324	WP7D240E310	TAL-A46-C	N/A
35	HDWC250C-0.4F3	250/200	275/220	360	WP7D264E310	TAL-A46-D	N/A
36	HDWC313C-0.4F3	313/250	350/280	450	WP10D320E350	TAL-A46-G	N/A
37	HDWC400C-0.4F3	400/320	440/352	576	WP13D385E310	TAL-A473-A	N/A
38	HDWC450C-0.4F3	450/360	500/400	648	WP13D440E310	TAL-A473-B	N/A
39	HDWC500C-0.4F3	500/400	550/440	720	WP13D490E310	TAL-A473-C	N/A
40	HDWC625C-0.4F3	625/500	688/550	900	6M33D633E310	TAL-A473-F	N/A
41	HDWC750C-0.4F3	750/600	825/660	1080	6M33D725E310	TAL-A49-B	N/A
42	HDWC800C-0.4F3	800/640	888/710	1152	8M33D800E310	TAL-A49-C	N/A
43	HDWC910C-0.4F3	910/728	1000/800	1310	8M33D895E310	TAL-A49-D	N/A
44	HDWC1000C-0.4F3	1000/800	1100/880	1440	8M33D975E310	TAL-A49-E	N/A
45	HDWC1125C-0.4F3	1125/900	1250/1000	1620	12M33D1108E310	LSA50.2 M6	N/A
46	HDWC1250C-0.4F3	1250/1000	1375/1100	1800	12M33D1240E310	LSA50.2 M6	N/A
47	HDWC1350C-0.4F3	1350/1080	1500/1200	1944	12M33D1320E310	LSA50.2 L7	N/A
48	HDWC1500C-0.4F3	1500/1200	1650/1320	2160	12M33D1500E310	LSA50.2 L8	N/A
49	HDWC1640C-0.4F3	1640/1312	1875/1500	2362	16M33D1680E310	LSA50.2 VL10	N/A
50	HDWC1875C-0.4F3	1875/1500	2062/1650	2700	16M33D1800E310	LSA52.3 S6	N/A
51	HDWC2000C-0.4F3	2000/1600	2200/1760	2880	16M33D1980E310	LSA52.3 S6	N/A
52	HDWC2250C-0.4F3	2250/1800	2500/2000	3240	20M33D2210E310	LSA52.3 L9	N/A
53	HDWC2500C-0.4F3	2500/2000	2750/2200	3600	12M55D2450E310	LSA52.3 L12	N/A
54	HDWC2750C-0.4F3	2750/2200	3000/2400	3960	12M55D2700E310	LSA52.3 UL16	N/A
55	HDWC3000C-0.4F3	3000/2400	3250/2600	4320	16M55D2900E310	LSA53.2 M9	N/A
More details pls contact info@hd-power.com
